Rockford fan clutches are available from Viscofans

Rockford fan clutches: Made for the toughest conditions

The Rockford line of high-performance fan clutches for off-highway applications continues to be the standard bearer for the reduction of fuel consumption and fan-generated noise, prolonged engine life, fast warm up and improved productivity.

Through using either a standalone control system or an engines’ high-tech ECM, Rockford’s unique variable speed technology enables their fan clutches to respond to changes in engine cooling demands by intelligently varying the speed. The benefits of this Rockford system, by allowing the fan to slow down or speed up as required, means applications utilize less working horsepower from the engine and help lower fuel consumption, increasing the efficiencies of your applications.

Viscofans can offer the full complement of Rockford fan clutches in various sizes. Each fan clutch series number relates to its relative size within the product family. We also offer fan clutches for engines from 400 to 4,000 horsepower which use cooling fans from 10 to 300 horsepower.

Some of the benefits of Rockford fan clutches

Increases fuel economy and usable horsepower

Reduces decibel rating for noise regulation

Eliminates shock load on engine components

Reduces noise for enhanced operator comfort

Speeds up engine warm-up in cold temperatures

Permits programmed fan speed clipping at high engine speeds

Click to meet the Rockford fan clutch product line

rockford-fan-clutch-series-125

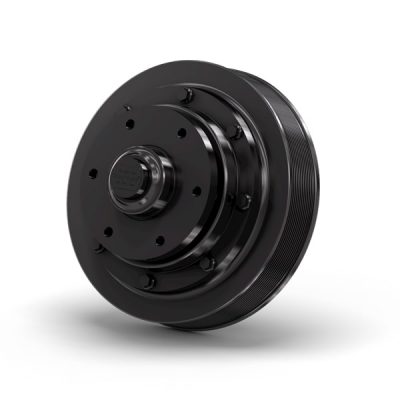

Rockford Fan Clutch Series 125

Description/Application
The Series 125 is a variable Rockford fan clutch. It is designed for industrial and  off-highway applications. It is used where space limitations are critical, and is  intended to interface with current or future electronics control technology.

Cooling Fan
10 – 40 Horsepower

RPM
1,000 – 2,600 RPM

rockford-fan-clutch-series-170

Rockford Fan Clutch Series 170

Description/Application
The Series 170 Rockford fan clutch is designed for medium to lighter duty off-highway and industrial applications. This oil-actuated fan clutch enables vehicle efficiency gains and aids in noise reduction  applications.

Cooling Fan
20 – 60 Horsepower

RPM
600 – 2,100 RPM

rockford-fan-clutch-series-200

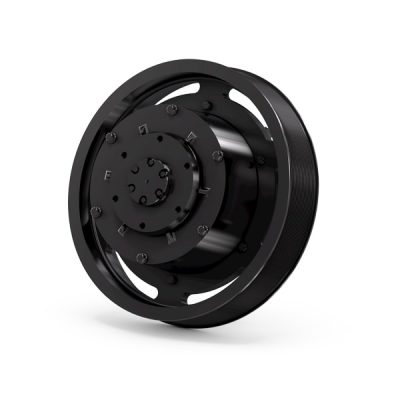

Rockford Fan Clutch Series 200

Description/Application
The Series 200 Rockford fan clutch is designed for medium duty off-highway and industrial applications. This fan clutch enables vehicle efficiency by minimizing parasitic load on the engine and reduced warm up time.

Cooling Fan
40 – 90 Horsepower

RPM
600 – 2,100 RPM

rockford-fan-clutch-series-270

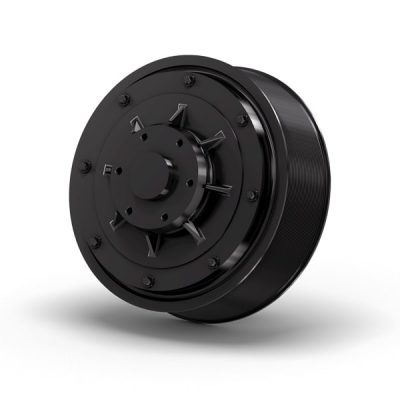

Rockford Fan Clutch Series 270

Description/Application
The Series 270 Rockford fan clutch is designed for heavy-duty off-highway applications and provides efficiency through on demand cooling in large applications. The effects of over-cooling are reduced in cold weather applications.

Cooling Fan
80 – 150 Horsepower

RPM
900 – 1,200 RPM

rockford-fan-clutch-series-370

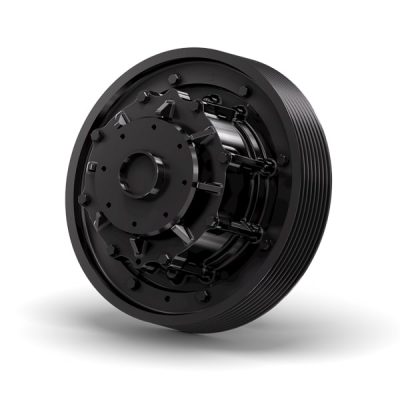

Rockford Fan Clutch Series 370

Description/Application
The Series 370 Rockford fan clutch is designed for the largest applications. This is the newest addition to the Rockford product line. This fan clutch was developed to meet the cooling demands of the largest off-highway applications.

Cooling Fan
150 – 300 Horsepower

RPM
100 – 900 RPM

We also offer full rebuild and repair facilities in-house for all Rockford clutches

That’s right! Not only do we supply and ship Rockford clutches all over the world, we also offer a full rebuild and repair service too!
