/ / / 1806712 DAF Fan Clutch

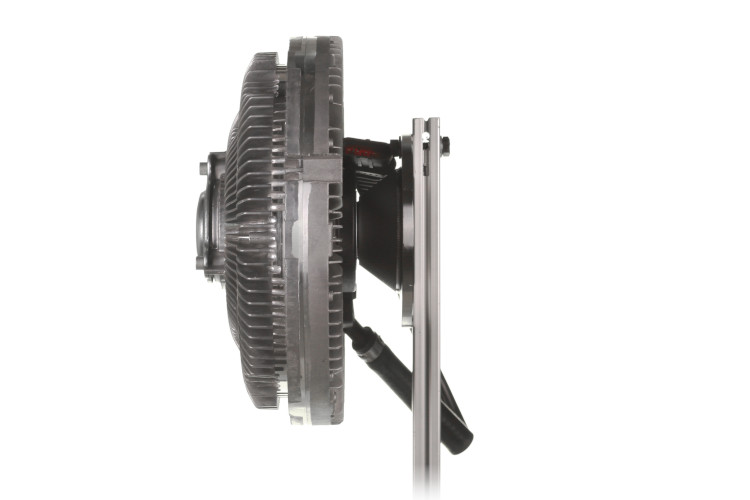

1806712 DAF Fan Clutch

The 1806712 DAF Fan Clutch fits a wide variety of DAF XF and CF configurations and designs.

We're the No. 1 choice for fan clutches and fan blades

  • Done EXCLUSIVE, trade-only price
  • Done Manufacturer's Warranty
  • Done International shipping
OE No. 1806712 Category: Tag:
Rotation* CW
Diameter (mm) 273
Fan Pilot (mm) 255
No. of Fan Bolt Circles 6
Shaft Outer Diameter (mm) 138
Mounting 6 Hole Flange
Other OEM Part Numbers** 1732274, 1887180

* CW= Clockwise, CCW=Counter-Clockwise.
** Here is listed all the supersessional and alternative OE numbers for the 1806712 DAF Fan Clutch.
*** Not the part you’re looking for? Try our OE Number Quoting Tool instead.

VehicleModel YearKWHPCCDesignTonnageConfiguration
XF 105 FA 105.46010.2005 –34046212900Platform / Chassis184×2
XF 105 FA 105.51010.2005 –37551012900Platform / Chassis184×2
XF 105 FAK 105.46010.2005 –34046212900Platform / Chassis328×2/4
XF 105 FAK 105.51010.2005 –37551012900Platform / Chassis328×2/4
XF 105 FTT 105.46010.2005 –34046212900Truck Tractor266×4
XF 105 FTT 105.51010.2005 –37551012900Truck Tractor266×4
XF 105 FTM 105.46010.2005 –34046012900Truck Tractor328×4/4
XF 105 FTM 105.51010.2005 –37551012900Truck Tractor328×4/4
CF 85 FA 85.36010.2006 – 05.201326536012900Platform / Chassis184×2
CF 85 FA 85.41010.2006 – 05.201330040812900Platform / Chassis184×2
CF 85 FA 85.46010.2006 – 05.201334046212900Platform / Chassis184×2
CF 85 FA 85.51010.2006 – 05.201337551012900Platform / Chassis184×2
CF 85 FAG 85.360, FAN 85.36010.2006 – 05.201326536012900Platform / Chassis25.76×2/4
CF 85 FAG 85.410, FAN 85.41010.2005 – 05.201330040812900Platform / Chassis25.76×2/4
CF 85 FAC 85.41010.2005 – 05.201330040812900Platform / Chassis328×2/4
CF 85 FAC 85.46010.2005 – 05.201334046212900Platform / Chassis328×2/4

Providing our customers with peace of mind, as well as quality engine cooling parts at trade-only prices, is what we’re all about. As such, all parts bought from us come with manufacturers warranties as standard. At Viscofans, we offer two types of warranty on parts:

  1. Fan Clutches and Radiator Fan Assemblies come with a 1-year manufacturers warranty.
  2. Fan Blades have a 2-year manufacturers warranty.

We also go the extra mile and check all our parts before leaving site so that they receive full Viscofans certification.

For more information about our warranties please contact us directly.

From our UK headquarters we supply the domestic UK market and export orders of all sizes to many countries across Europe and worldwide, including the US and Middle East.

We despatch orders Monday to Friday.

All single or small boxed orders placed for delivery before 3pm will be despatched the same day. We will endeavour to despatch any single or small order placed after 3pm on the same day. In the event of an order missing our despatch cut-off times, orders will be despatched on the following working day. All despatch times are subject to stock availability.

Larger orders will be palletised and sold with Incoterms FCA at our premises. Orders will be safely packaged, loaded and supplied with commercial invoices.

All orders will have despatch confirmed by email.

All deliveries will require a signature on delivery.

If you have special delivery needs, require a part urgently or have a question regarding delivery schedules and costs, please call our sales team who will be happy to help on +44 (0)1274 637 851.
