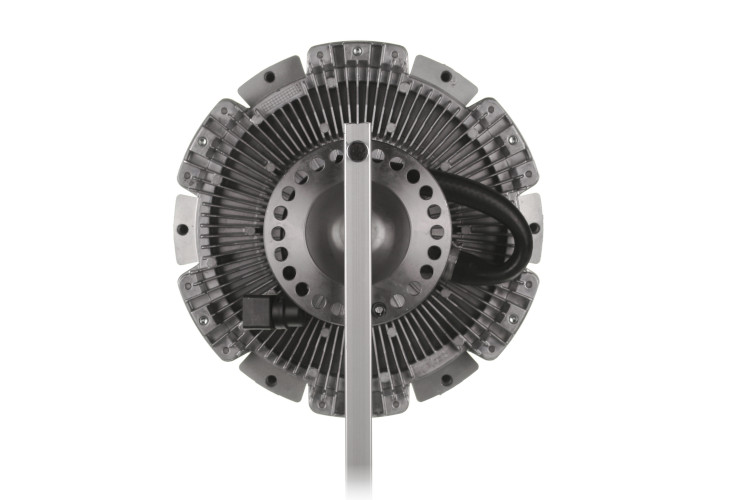

1910613 DAF Fan Clutch
Mounted with a 9 hole flange, the 1910613 DAF Fan Clutch is a versatile fan hub for a host of DAF XF and CF model configurations.
We're the No. 1 choice for fan clutches and fan blades
- EXCLUSIVE, competitive prices
- Manufacturer's Warranty
- International shipping
Rotation* | CW |
Diameter (mm) | 290 |
Fan Pilot (mm) | 252 |
No. of Fan Bolt Circles | 6 |
Shaft Outer Diameter (mm) | 138 |
Mounting | 9 Hole Flange |
* CW= Clockwise, CCW=Counter-Clockwise.
** Here is listed all the supersessional and alternative OE numbers for the 1910613 DAF Fan Clutch.
*** Not the part you’re looking for? Try our OE Number Quoting Tool instead.
Additional information
Control Type | Electronic Fan Clutch |
---|---|
Industry | On-Highway |
Vehicle | Model Year | KW | HP | CC | Design | Tonnage | Configuration |
CF FA 220 | 07.2014 – | 164 | 223 | 6690 | Platform / Chassis | 19 | 4×2 |
CF FA 290 | 05.2013 – | 210 | 286 | 10840 | Platform / Chassis | 18 | 4×2 |
CF FAR 290, FAS 290 | 05.2013 – | 210 | 286 | 10840 | Platform / Chassis | 26 | 6×2 |
CF FAN 290, FAG 290 | 05.2013 – | 210 | 286 | 10840 | Platform / Chassis | 26 | 6×2/4 |
CF FAT 290 | 05.2013 – | 210 | 286 | 10840 | Platform / Chassis | 26 | 6×4 |
CF FAT 290 | 05.2013 – | 210 | 286 | 10840 | Dump Truck | 26 | 6×4 |
CF FAD 290 | 05.2013 – | 210 | 286 | 10840 | Platform / Chassis | 32 | 8×4/4 |
CF FAD 290 | 05.2013 – | 210 | 286 | 10840 | Dump Truck | 32 | 8×4/4 |
CF FA 310 | 07.2014 – | 231 | 314 | 6690 | Platform / Chassis | 19 | 4×2 |
CF FA 330 | 05.2013 – | 240 | 326 | 10840 | Platform / Chassis | 18 | 4×2 |
CF FT 330 | 05.2013 – | 240 | 326 | 10840 | Truck Tractor | 19.5 | 4×2 |
CF FAR 330, FAS 330 | 05.2013 – | 240 | 326 | 10840 | Platform / Chassis | 26 | 6×2 |
CF FAD 330 | 05.2013 – | 240 | 326 | 10840 | Platform / Chassis | 32 | 8×4/4 |
CF FAD 330 | 05.2013 – | 240 | 326 | 10840 | Dump Truck | 32 | 8×4/4 |
CF FA 370 | 05.2013 – | 271 | 370 | 10840 | Platform / Chassis | 18 | 4×2 |
CF FAR 370, FAS 370 | 05.2013 – | 271 | 370 | 10840 | Platform / Chassis | 26 | 6×2 |
CF FAN 370, FAG 370 | 05.2013 – | 271 | 370 | 10840 | Platform / Chassis | 26 | 6×2/4 |
CF FAT 370 | 05.2013 – | 271 | 370 | 10840 | Platform / Chassis | 26 | 6×4 |
CF FAT 370 | 05.2013 – | 271 | 370 | 10840 | Dump Truck | 26 | 6×4 |
CF FAD 370 | 05.2013 – | 271 | 370 | 10840 | Platform / Chassis | 32 | 8×4/4 |
CF FAD 370 | 05.2013 – | 271 | 370 | 10840 | Dump Truck | 32 | 8×4/4 |
CF FA 400 | 05.2013 – | 291 | 396 | 10840 | Platform / Chassis | 19 | 4×2 |
CF FA 400 | 05.2013 – | 291 | 396 | 10840 | Platform / Chassis | 20.5 | 4×2 |
CF FT 400 | 05.2013 – | 291 | 396 | 10840 | Truck Tractor | 18.6 | 4×2 |
CF FT 400 | 05.2013 – | 291 | 396 | 10840 | Truck Tractor | 19.5 | 4×2 |
CF FAR 400, FAS 400 | 05.2013 – | 291 | 396 | 10840 | Platform / Chassis | 26 | 6×2 |
CF FTP 400 | 05.2013 – | 291 | 396 | 10840 | Truck Tractor | 26 | 6×2 |
CF FAN 400, FAG 400 | 05.2013 – | 291 | 396 | 10840 | Platform / Chassis | 26 | 6×2/4 |
CF FTG 400 | 05.2013 – | 291 | 396 | 10840 | Truck Tractor | 26 | 6×2/4 |
CF FAT 400 | 05.2013 – | 291 | 396 | 10840 | Platform / Chassis | 26 | 6×4 |
CF FAT 400 | 05.2013 – | 291 | 396 | 10840 | Dump Truck | 26 | 6×4 |
CF FAC 400 | 12.2015 – | 291 | 396 | 10840 | Platform / Chassis | 32 | 8×2/4 |
CF FAQ 400, FAX 400 | 12.2015 – | 291 | 396 | 10840 | Platform / Chassis | 32 | 8×2/6 |
CF FAD 400 | 05.2013 – | 291 | 396 | 10840 | Platform / Chassis | 32 | 8×4/4 |
CF FAD 400 | 05.2013 – | 291 | 396 | 10840 | Dump Truck | 32 | 8×4/4 |
XF FA 410 | 10.2012 – | 303 | 412 | 12900 | Platform / Chassis | 18 | 4×2 |
XF FA 410 | 10.2012 – | 303 | 412 | 12900 | Platform / Chassis | 19 | 4×2 |
XF FA 410 | 10.2012 – | 303 | 412 | 12900 | Platform / Chassis | 20.5 | 4×2 |
XF FT 410 | 10.2012 – | 303 | 412 | 12900 | Truck Tractor | 18 | 4×2 |
XF FAR 410 | 10.2012 – | 303 | 412 | 12900 | Platform / Chassis | 25.3 | 6×2 |
XF FAR 410, FAS 410 | 10.2012 – | 303 | 412 | 12900 | Platform / Chassis | 26 | 6×2 |
XF FTP 410 | 10.2012 – | 303 | 412 | 12900 | Truck Tractor | 23.4 | 6×2 |
XF FTP 410, FTR 410, FTS 410 | 10.2012 – | 303 | 412 | 12900 | Truck Tractor | 26 | 6×2 |
XF FAN 410 | 10.2012 – | 303 | 412 | 12900 | Platform / Chassis | 26 | 6×2/4 |
XF FTG 410, FTN 410 | 10.2012 – | 303 | 412 | 12900 | Truck Tractor | 26 | 6×2/4 |
XF FA 440 | 10.2012 – | 320 | 435 | 10840 | Platform / Chassis | 18 | 4×2 |
XF FA 440 | 10.2012 – | 320 | 435 | 10800 | Platform / Chassis | 19 | 4×2 |
XF FA 440 | 10.2012 – | 320 | 435 | 10800 | Platform / Chassis | 20.5 | 4×2 |
XF FT 440 | 10.2012 – | 320 | 435 | 10840 | Truck Tractor | 18 | 4×2 |
XF FAR 440 | 10.2012 – | 320 | 435 | 10840 | Platform / Chassis | 25.3 | 6×2 |
XF FAR 440, FAS 440 | 10.2012 – | 320 | 435 | 10840 | Platform / Chassis | 26 | 6×2 |
XF FTP 440 | 10.2012 – | 320 | 435 | 10840 | Truck Tractor | 23.4 | 6×2 |
XF FTP 440, FTR 440, FTS 440 | 10.2012 – | 320 | 435 | 10840 | Truck Tractor | 26 | 6×2 |
XF FAN 440 | 10.2012 – | 320 | 435 | 10840 | Platform / Chassis | 26 | 6×2/4 |
XF FTG 440, FTN 440 | 10.2012 – | 320 | 435 | 10840 | Truck Tractor | 26 | 6×2/4 |
XF FA 460 | 10.2012 – | 340 | 462 | 12900 | Platform / Chassis | 18 | 4×2 |
XF FA 460 | 10.2012 – | 340 | 462 | 12900 | Platform / Chassis | 19 | 4×2 |
XF FA 460 | 10.2012 – | 340 | 462 | 12900 | Platform / Chassis | 20.5 | 4×2 |
XF FT 460 | 10.2012 – | 340 | 462 | 12900 | Truck Tractor | 18 | 4×2 |
XF FAR 460 | 10.2012 – | 340 | 462 | 12900 | Platform / Chassis | 25.3 | 6×2 |
XF FAR 460, FAS 460 | 10.2012 – | 340 | 462 | 12900 | Platform / Chassis | 26 | 6×2 |
XF FTP 460 | 10.2012 – | 340 | 462 | 12900 | Truck Tractor | 23.4 | 6×2 |
XF FTP 460, FTR 460, FTS 460 | 10.2012 – | 340 | 462 | 12900 | Truck Tractor | 26 | 6×2 |
XF FAN 460 | 10.2012 – | 340 | 462 | 12900 | Platform / Chassis | 26 | 6×2/4 |
XF FTG 460, FTN 460 | 10.2012 – | 340 | 462 | 12900 | Truck Tractor | 26 | 6×2/4 |
XF FTT 460 | 10.2012 – | 340 | 462 | 12900 | Truck Tractor | 26 | 6×4 |
XF FAD 460 | 10.2012 – | 340 | 462 | 12900 | Platform / Chassis | 32 | 8×4/4 |
XF FA 510 | 10.2012 – | 375 | 510 | 12900 | Platform / Chassis | 18 | 4×2 |
XF FA 510 | 10.2012 – | 375 | 510 | 12900 | Platform / Chassis | 19 | 4×2 |
XF FA 510 | 10.2012 – | 375 | 510 | 12900 | Platform / Chassis | 20.5 | 4×2 |
XF FT 510 | 10.2012 – | 375 | 510 | 12900 | Truck Tractor | 18 | 4×2 |
XF FAR 510 | 10.2012 – | 375 | 510 | 12900 | Platform / Chassis | 25.3 | 6×2 |
XF FAR 510, FAS 510 | 10.2012 – | 375 | 510 | 12900 | Platform / Chassis | 26 | 6×2 |
XF FTP 510 | 10.2012 – | 375 | 510 | 12900 | Truck Tractor | 23.4 | 6×2 |
XF FTP 510, FTR 510, FTS 510 | 10.2012 – | 375 | 510 | 12900 | Truck Tractor | 26 | 6×2 |
XF FAN 510 | 10.2012 – | 375 | 510 | 12900 | Platform / Chassis | 26 | 6×2/4 |
XF FTG 510, FTN 510 | 10.2012 – | 375 | 510 | 12900 | Truck Tractor | 26 | 6×2/4 |
XF FTT 510 | 10.2012 – | 375 | 510 | 12900 | Truck Tractor | 26 | 6×4 |
XF FAD 510 | 10.2012 – | 375 | 510 | 12900 | Platform / Chassis | 32 | 8×4/4 |
